2000 kVA phase three phase mounted transformer e ile ea isoa Canada ka 2025. Matla a lekantsoeng a transformer ke 2000 kVA le ONAN cooling. Motlakase o ka sehloohong ke 25 kV o nang le ± 2 * 2.5% tapping range (NLTC), motlakase oa bobeli ke 0.6Y / 0.347 kV, ba thehile sehlopha sa vector sa Dyn1.

Three Phase Pad Mounted Transformer ke sesebediswa sa motlakase se matla, sa kantle-se sebetsang hantle se sebediswang haholo disetemeng tsa kabo ya motlakase diteropong le mahaeng. Mosebetsi oa mantlha oa eona ke ho fetolela{2}}motlakase oa motlakase o phahameng ho ba matla a tlase-ea motlakase ho khotsofatsa litlhoko tsa basebelisi ba bolulo, khoebo le indasteri, ho fana ka tšehetso e tšepahalang ea motlakase.

Hangata sesebelisoa sena se na le lisebelisoa tse fapaneng tsa polokeho le ho beha leihlo ho netefatsa hore ts'ebetso e sebetsa hantle ebile e bolokehile. Har'a tsena, li-fuse tsa bayonet le li-fuse tsa hona joale- tse fokotsang li sireletsa potoloho ka mokhoa o atlehileng, 'me li itokolla motlakase ha li le ngata haholo kapa ha li le khutšoanyane{2}maemo a potoloho ho thibela tšenyo ea thepa. Phetoho ea khefu ea mojaro e lumella basebedisi ho fetola ka mokhoa o sireletsehileng potoloho tlas'a mojaro, ho nolofatsa tlhokomelo le tlhahlobo. The de-energized tap changer e sebelisetsoa ho lokisa ka mokhoa o bolokehileng motlakase oa motlakase oa transfoma hore o lumellane le maemo a fapaneng a mojaro, ho netefatsa ho tenyetseha le botsitso phepelong ea motlakase.

Ntle le moo, thermometer e kaholimo ea oli le gauge ea boemo ba oli e khona ho lekola mocheso le boemo ba mokelikeli oa oli e kenang kahare ka nako ea 'nete, e hlokomelise basebetsi ho tlatsa oli le ho boloka bophelo bo botle ba lisebelisoa. Sekhahla sa khatello ea vacuum se thusa ho lekola boemo ba ka hare ba vacuum ea transformer, ho thibela mongobo le litšila ho kena, ka hona, ho lelefatsa bophelo ba lisebelisoa. Sesebelisoa sa ho imolla khatello se ka itokolla ka bohona khatello ha khatello ea ka hare e e-ba holimo haholo, ho netefatsa polokeho ea thepa.

Likarolo tsena tse felletseng li etsa hore Three Phase Pad Mounted Transformer e be karolo ea bohlokoahali lits'ebetsong tsa sejoale-joale tsa kabo ea motlakase, ho netefatsa ho ts'epahala le botsitso ba eona tlasa maemo a fapaneng a ts'ebetso.

1.2 Tlhaloso ea Setsebi

2000 kVA pad mounted transformer specifications type le data sheet

1.3 Litšoantšo

2000 kVA pad mounted transformer diagram to the size and size.

02 Tlhahiso

2.1 Konokono

Karolo ea boraro-ea boraro-kholomo ea mantlha ke sebopeho sa ka hare sa transformer, se ikarabellang bakeng sa ho tsamaisa matla a khoheli hantle. Konokono ena e entsoe ka ho laminating lishiti tsa tšepe tsa silicon ho fokotsa tahlehelo ea matla le ho ntlafatsa katleho ea phetoho ea motlakase. Likholomo tse tharo-li bolela hore konokono e na le li-circuits tse tharo tse ikemetseng tsa makenete, e 'ngoe le e 'ngoe e tsamaellana le karolo ea phetiso ea hajoale. Tokisetso ena e ntlafatsa matla a khoheli, a nolofalletsa matla a khoheli ho potoloha hantle ka har'a mantlha, ka hona a matlafatsa ts'ebetso le botsitso ba sistimi eohle. Moetso oa likholomo tse tharo-ha o tšehetse feela phetiso ea-ea mekhahlelo e meraro empa hape o fokotsa ho lutla ha matla a khoheli, ho netefatsa hore transfoma e sebetsa hantle. Moralo ka kakaretso o ikemiselitse ho nolofalletsa sistimi ea matla ho fana ka phetiso ea matla e tsitsitseng le e tšepahalang.

2.2 Ho tsubella

Karolo e meraro-Pad Mounted Transformer e na le moralo o matsoelintsoeke o nang le mehele e nang le likhutlo tse ngata e bapalang karolo ea bohlokoa. Lesale la angular le sebeletsa ho lokisa mapheo a maholo le a thusang mokokotlong oa transformer, ho netefatsa hore ba ka mamella khatello ea motlakase le mechine e hlahisoang nakong ea ts'ebetso, kahoo ba boloka botsitso le ho tšepahala. E boetse e fana ka karohano ea motlakase lipakeng tsa li-winding, ho thibela li-circuits tse khutšoane le ho matlafatsa polokeho ea motlakase.

Ho feta moo, selikalikoe sa angular se ntlafatsa ts'ebetso ea motlakase le polokeho ka ho eketsa ts'ireletso le matla a mochini a mapheo, ho fokotsa ho thothomela le ho falla, le ho matlafatsa botsitso le botsitso. E thusa ho fokotsa mocheso, e lumellang transformer hore e sebetse ka har'a mefuta e tloaelehileng ea mocheso le ho lelefatsa bophelo ba eona. Ho feta moo, e fokotsa tšitiso ea motlakase lipakeng tsa mapheo, e ntlafatsa ts'ebeliso ea matla le ts'ebeliso.

2.3 Tanka

Ho latela maemo a Canadian Standards Association (CSA), tanka ea oli ea-mohato o meraro oa Pad Mounted Transformer e na le likarolo tse 'maloa tsa bohlokoa: lemati le sirelelitsoe ka liboutu tse tharo tsa pentagonal ho matlafatsa polokeho le tšebetso ea ho tiisa; ha ho na karohano lipakeng tsa-motlakase o phahameng le o tlase{2}}liphaposi tsa motlakase o tlase, tse nolofatsang phallo ea oli le ho netefatsa hore mocheso o fela; 'me ho kentsoe koporo ea motheo ka phaposing e tlase-ea motlakase ho lebisa metsi fatše ka mokhoa o sireletsehileng ha ho ka ba le phoso. Lintho tsena tsa moralo li kopane li netefatsa polokeho, ts'epahalo le ts'ebetso ea tanka ea oli, e tsamaellanang le litekanyetso tsa CSA tsa matla ha ho ntse ho nahanoa boiketlo ba tlhokomelo.

2.4 Kopano ea ho Qetela

1. Ho kenya Likhoeli:Li-coil tse tsamaeang ka moea li sirelelitsoe holim'a mantlha.

2. Ho Phahamisa Karolo e Sebeletsang:Karolo e sebetsang e kopantsoeng ( windings le core) e kenngoa ka hloko ka tanka ea oli.

3. Ho kenya Lisebelisoa:Lisebelisoa tse kang valve ea ho fokotsa khatello, fuse ea bayonet, le gauge ea boemo ba oli li kentsoe bakeng sa ts'ebetso e sireletsehileng le ho beha leihlo.

4. Lihokelo tsa Motlakase:Likamano tse nepahetseng tsa motlakase pakeng tsa maqhubu a mantlha le a bobeli a etsoa.

5. Ho Tlatsa Oli:Oli ea Transformer e tlatsitsoe ka tanka ho qoelisa ka botlalo karolo e sebetsang, ho netefatsa hore ho pholile le ho kenya letsoho.

LITS'OANE LE FUSE
	Bayonet Fuse 3 Fuse ea Hona Joale ea Moedi (CLF) 3
	Load Break Switch 1 Hlahisa{{0}matla a Tap Changer 1
LITŠOANTŠISO LE LITŠOANTŠISO
	Thermometer ea oli e holimo 1 Tekanyo ea boemo ba oli 1
	Vacuum Pressure Gauge 1 Sesebelisoa sa ho Imolla Khatello 1 Valve ea ho Khaola Oli e nang le Mohlala oa Valve 1 Khokahano ea Khatello e Phahameng le ho Tlatsa Plug 1

04 Ho etsa liteko

05 Ho paka le ho Romela

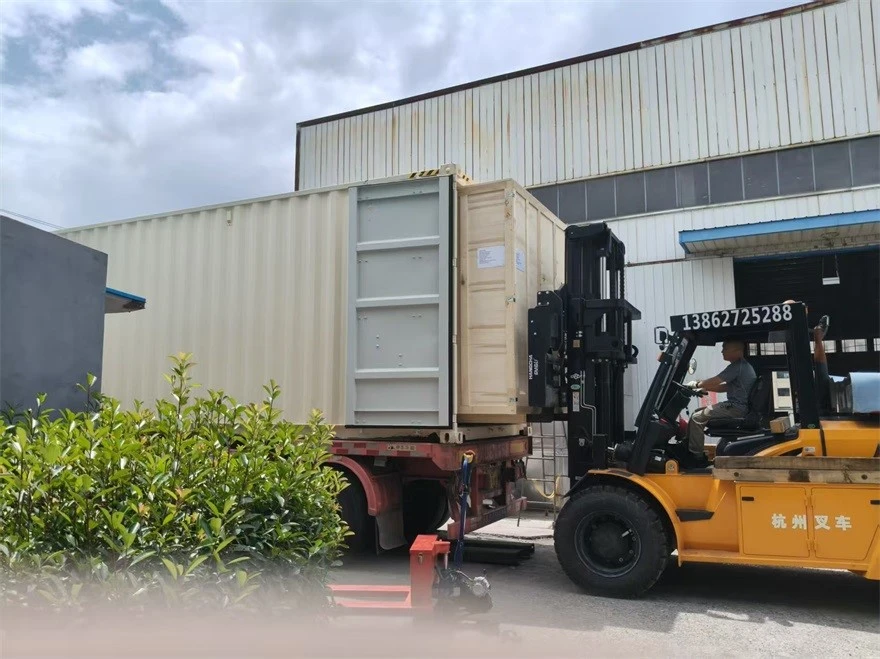

Pad Mounted Transformer ea mekhahlelo e meraro e tla tsamaisoa ho latela lipehelo tsa CIF (Cost, Insurance, and Freight) ho ea boema-kepeng ba Montreal, Canada. Thepa e tla romelloa ka leoatle ho netefatsa polokeho le katleho. Motho ea tsamaisang thepa o tla fana ka inshorense bakeng sa thepa ho itšireletsa khahlanong le tahlehelo kapa litšenyehelo tse ka bang teng nakong ea leeto. Ha e fihla Montreal, thepa e tla kena lits'ebetsong tsa ho lahla thepa, ho netefatsa hore litokomane tsohle tse amehang li phethehile bakeng sa ho sebetsa hantle. Ka mor'a hore ho be le tumello ea moetlo, transformer e tla tsamaisoa ka mokhoa o sireletsehileng ho ea moo e eang teng.

06 Sebaka le Kakaretso

Mekhahlelo e meraro-Pad Mounted Transformer e bapala karolo ea bohlokoa lits'ebetsong tsa kabo ea motlakase, ho fana ka tharollo e sebetsang hantle le e bolokehileng ea phetolo ea motlakase le ho ajoa. Moralo oa eona o matla le ts'ebetso e ikhethang e e etsa khetho e nepahetseng bakeng sa lits'ebetso tse fapaneng. Ha tlhoko ea motlakase e ntse e phahama le khothatso ea matla a ka nchafatsoang e ntse e hola, karolo e meraro ea-Pad Mounted Transformer e tla lula e le bohlokoa nakong e tlang ea meralo ea motheo ea motlakase, e leng se tla tsamaisa nts'etsopele ea moshoelella indastering ea motlakase.
