750 kVA Kantle Pad Mounted Transformer-34.5/0.48 kV|USA 2024

01 Kakaretso

1.1 Semelo sa Morero

750 kVA phase three phase mounted transformer e ile ea isoa Chaena ka 2024. Matla a lekantsoeng a transformer ke 750 kVA e nang le pholiso ea ONAN. Motlakase oa mantlha ke 34.5GrdY/19.92 kV e nang le ± 2 * 2.5% tapping range (NLTC), motlakase oa bobeli ke 0.277 / 0.48 kV, ba thehile sehlopha sa vector sa YNyn0.

The-phase pad-mounter mounter e na le moetso o koetsoeng, 'me e behiloe fatše, e leng se etsang hore ho be bonolo ho hokela lithapo. Sebaka se kampetsoeng sa transformer ha se kenelle metsi ebile ha se na lerole, se etsa hore se lokele maemo a leholimo a fapaneng. E amohela bushing ea khefu ea mojaro e leng sesebelisoa se ikhethileng se nolofalletsang tlhokomelo le likhokahano ntle le ho sitisa mojaro oa hona joale. Sena se lumella li-operators ho hokahanya le ho khaola lithapo ka mokhoa o sireletsehileng ha tsamaiso e ntse e le matla, kahoo e matlafatsa ho tšepahala le ho fetoha ha marang-rang a marang-rang a matla. Li-transformer-tse tharo tse phahamisitsoeng{7}} li na le likarolo tse fapaneng tsa polokeho, joalo ka tšireletso e ngata haholo, tšireletso ea potoloho e khuts'oane, le tlhahlobo ea mocheso ho netefatsa ts'ebetso e bolokehileng. Li-transformer tsa mekhahlelo e meraro li sebelisoa haholo lits'ebetsong tsa kabo ea motlakase litoropong le mahaeng, li fana ka tšehetso e tšepahalang ea matla ho fihlela tlhoko e ntseng e eketseha ea motlakase.

1.2 Tlhaloso ea Setsebi

Litlhaloso tsa mofuta oa 750 kVA le leqephe la data

1.3 Litšoantšo

750 kVA pad mounted transformer diagram to the size and size.

02 Tlhahiso

2.1 Konokono

Mokotla oa-phase ea mekhahlelo e meraro-e kentsoeng transformer e sebelisa kholomo-moetso oa mofuta, o nang le maoto a mangata a kopantsoeng hammoho ho fana ka tsela e kholo ea makenete. Moralo oa mantlha ke loop e koetsoeng, e eketsang tšireletso ea matla a khoheli le ho netefatsa phetoho e nepahetseng ea matla lipakeng tsa ho kenya le ho tsoa. Moralo oa mantlha hangata o sebelisa tlhophiso e ts'oanang ho netefatsa kabo e leka-lekaneng ea-mohato oa maqhubu a mararo, ho fokotsa lerata le ho thothomela nakong ea ts'ebetso. Khetho ea lisebelisoa tsa mantlha le moralo o fana ka conductivity e ntle ea mocheso, e thusang ho senya mocheso nakong ea ts'ebetso le ho boloka mocheso o nepahetseng oa ho sebetsa.

2.2 Ho tsubella

Maqhubu a na le lihlopha tse tharo tsa mapheo a tšoanang a tsamaisanang le-mohato oa motlakase oa mekhahlelo e meraro (A, B, le C mehato). Moralo ona o netefatsa tekatekano le tshebetso dipakeng tsa mohato o mong le o mong, ho thusa ho fana ka matla a tsitsitseng a{2}mohato a mararo. Li-winding tsa e hangata li entsoe ka aluminium joalo ka lisebelisoa tsa conductor. Li-winding li koahetsoe ka lisebelisoa tsa ho kenya letsoho ho thibela lipotoloho tse khutšoanyane le ho lutla. {{6}Meetso ea boleng bo holimo e ka fokotsang tahlehelo ea hona joale le tahlehelo ea mocheso, ea ntlafatsa ts'ebetso ea kakaretso ea transformer.

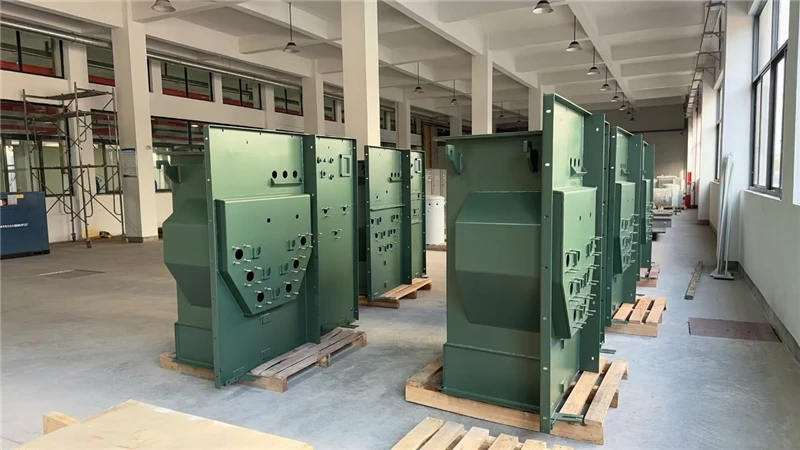

2.3 Tanka

Tanka e entsoe ka tšepe e sa jeleng paate- e sa jeleng paate ho matlafatsa ho tšoarella le matla a eona, ho netefatsa hore e khona ho mamella khatello ea oli e ka hare le tikoloho ea kantle. Tanka ea oli e na le moralo o tiisitsoeng ho thibela ho tsoa ha oli, ha o ntse o qoba ho kenella ha mongobo kapa litšila, ka hona ho boloka botsitso le bohloeki ba oli. Oli ea transformer ka har'a tanka e na le thepa e ntle haholo ea ho itšireletsa, e thibelang hantle liphoso tsa motlakase le ho lutla, ho netefatsa ts'ebetso e bolokehileng ea transformer. Tanka e na le litekanyo tsa boemo ba oli tse fanang ka tlhahlobo ea nako-ea 'nete ea boemo ba oli, ho netefatsa hore e lula sebakeng se tloaelehileng ho boloka pholiso e sebetsang hantle. Moralo oa tanka ea oli o kenyelletsa li-valve tsa khatello ea khatello ho thibela khatello e feteletseng ea kahare e ka lebisang ho senyeha ha tanka kapa ho phatloha.

2.4 Kopano ea ho Qetela

Ho Kena ha Maqhubu: Kenya li-winding tse lekiloeng ka har'a tanka ea oli, ho etsa bonnete ba hore li hokahane ka nepo le litsela tse nepahetseng.

Kenyelletso ea mantlha: Kopanya 'me u boloke motheo ka har'a tanka ea oli ho kopanya hantle le mapheo.

Ho Tlatsa Oli: Ka mor'a ho etsa bonnete ba hore likarolo tsohle tsa ka hare li kenngoa hantle, tlatsa tanka ea oli ka oli e sireletsang ho etsa bonnete ba hore li-winding le mantlha li kenngoa ka ho feletseng.

Ho Tiisa le ho Lekoa: Tiisa tanka ea oli 'me u etse liteko tsa khatello le ho lutla ho netefatsa hore ha ho na ho lutla ha oli.

Motlakase Wiring: Kenya likhoele tsa motlakase ho latela moralo oa motlakase, ho hokela litheminale bakeng sa mahlakore a phahameng-le mahlakore a tlaase{1}}.

03 Ho etsa liteko

(1) Teko e tloaelehileng

a) Karo-karolelano mabapi le likhokahano le maemo a pompo

b) Ho falla ka mahlakoreng

c) Ha ho{0}}tahlehelo ea mojaro ka 100% ea matla a matla a motlakase

d) Nako e thabisang ka 100% ea motlakase o lekantsoeng

e) Litahlehelo tsa thepa le tšitiso ho nako e lekantsoeng

f) Matla a motlakase a sebelisitsoeng

g) Matla a matla

h) Teko ea ho lemoha ha tanka e lutla-

i) Teko ea ho tsoelapele

(2) Mofuta oa teko

a) Ho hanyetsa

b) Ho phahama ha mocheso

c) Matla a tshusumetso

d) Radio{0}}e susumetsang motlakase

f) Botšepehi ba Transformer

g) Molumo o utloahalang oa mantlha

h) Ho mamella khatello e mpe

04 Sebaka le Kakaretso

Ka bokhuts'oanyane, -mohato oa rona oa "pad pad-mounted transformer" o etselitsoe ho fana ka ts'ebetso e ikhethang, e ts'epahalang le polokeho ho latela litlhoko tsa hau tsa kabo ea motlakase. Ka moaho oa eona o matla, thepa e hahelletsoeng e tsoetseng pele, le sistimi e pholileng e sebetsang hantle, transformer ena e etselitsoe ho sebetsa ka katleho maemong a fapaneng a tikoloho. Hore na o batla ho ntlafatsa meaho ea litoropo, lits'ebeletso tsa khoebo, kapa lits'ebetso tsa indasteri, transformer ea rona e fana ka tharollo e kopaneng le e fapaneng e fihlelang maemo a holimo a indasteri. Tšepa boitlamo ba rona ba ho ntlafatsa boleng le boqapi, 'me re khethe-mohato oa rona oa "pad pad-mohau oa transfoma ho netefatsa phepelo ea motlakase e tsitsitseng le e sebetsang hantle bakeng sa ts'ebetso ea hau.
